Replacing a Window Switch
(examples here are on a 940)


Front Passenger Window Switch   Rear Passenger Window Switch

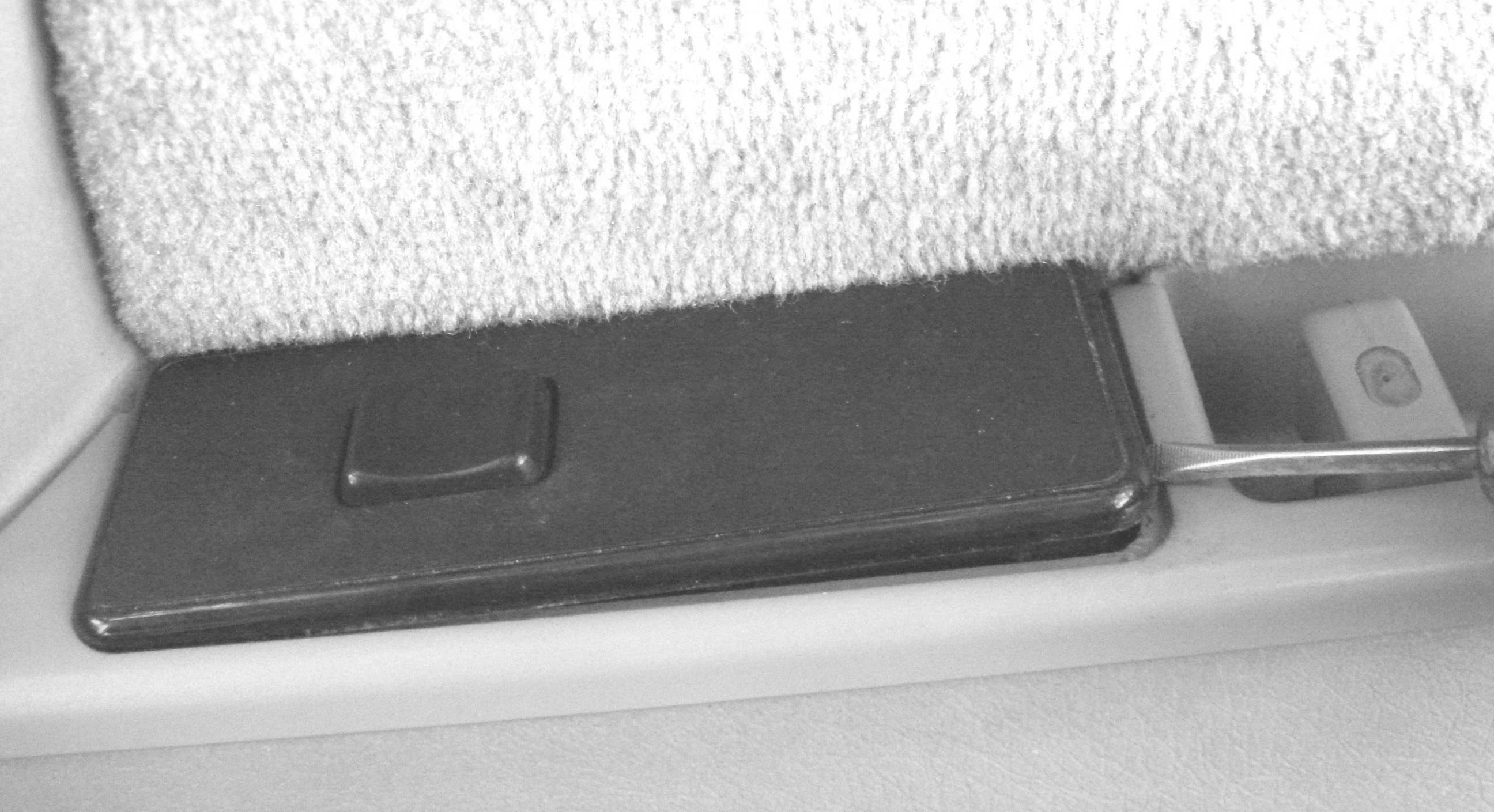

Pry black cover plate up with small flat-bladed
screwdriver.

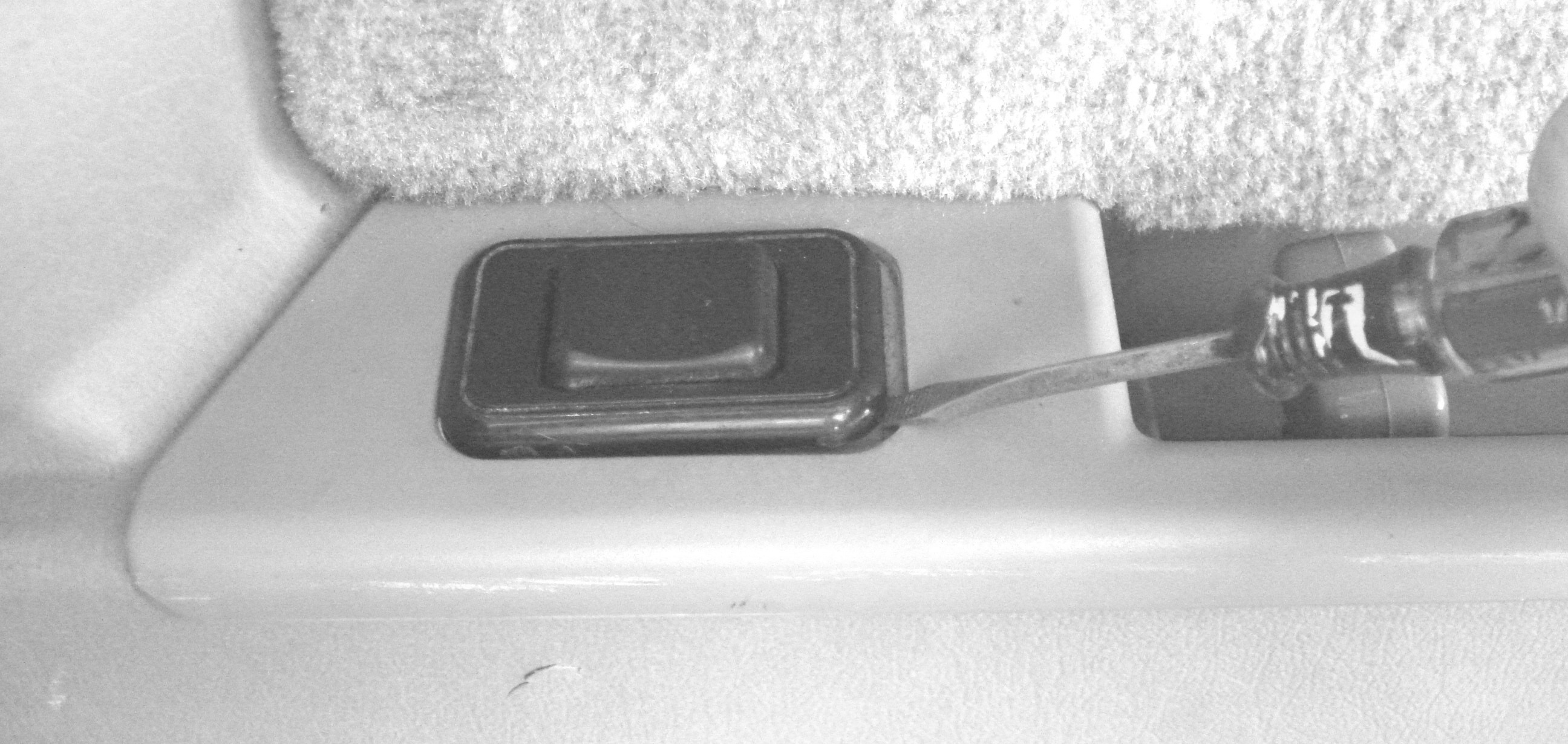

Pry small black cover plate up with small
flat-bladed screwdriver.




On underside of cover plate, you may have to
pry off black plastic surround by releasing small
hooks at four corners.

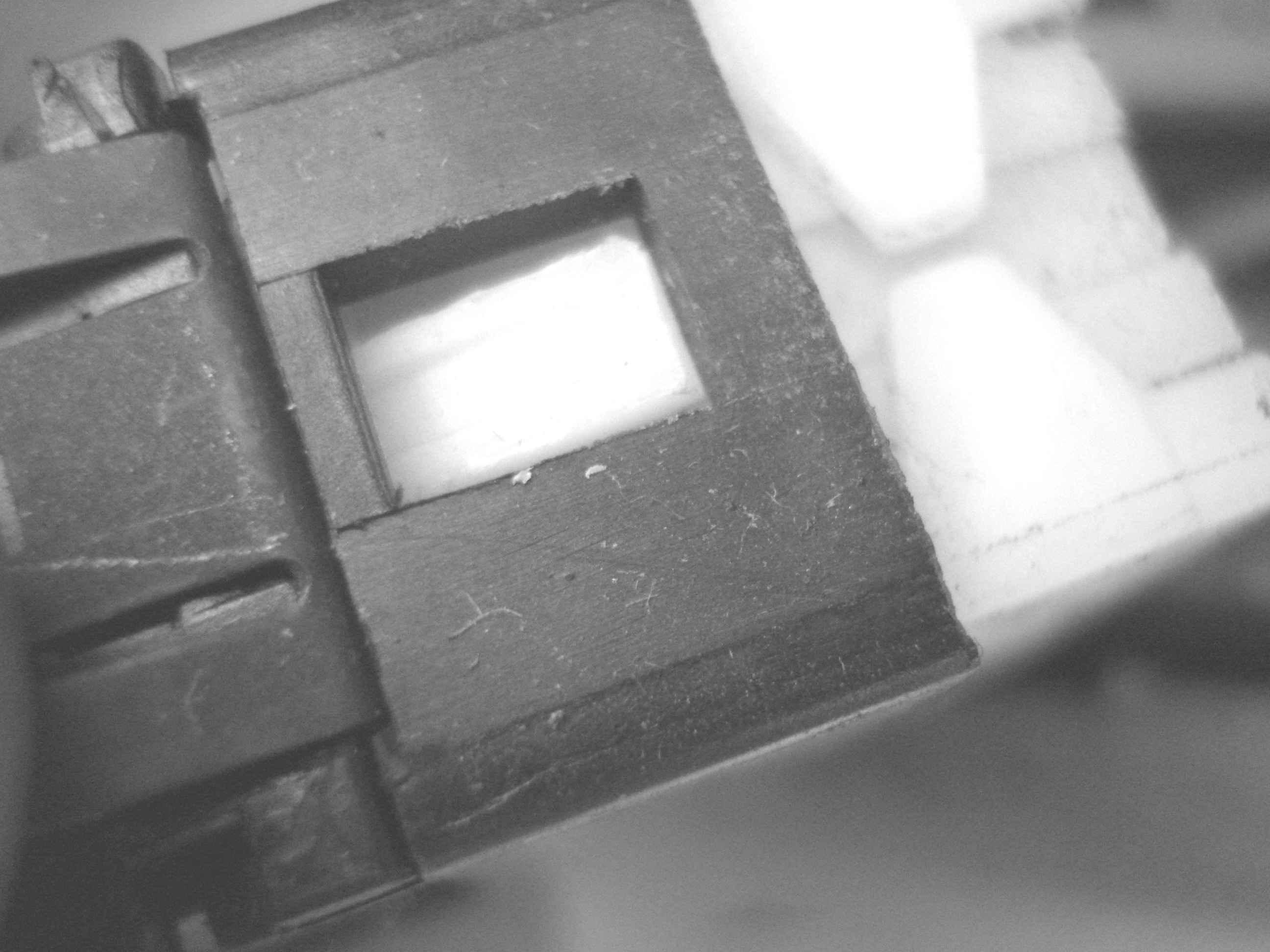

On ends of block, disconnect the switch from
its connector by gently prying up the black
plastic frame over the white locking block and
pull the two sections apart. Replace switch and
reassemble in reverse order.

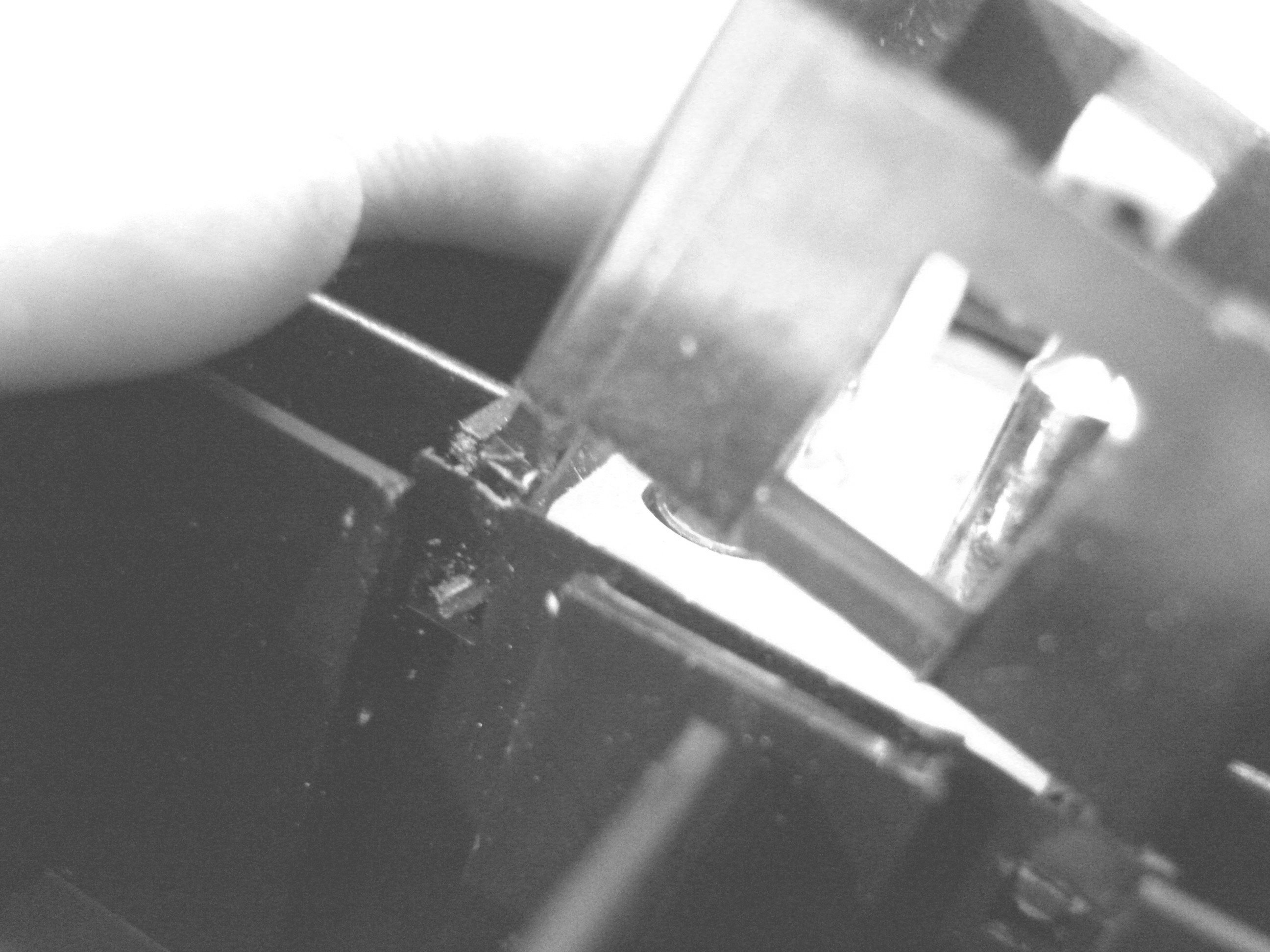

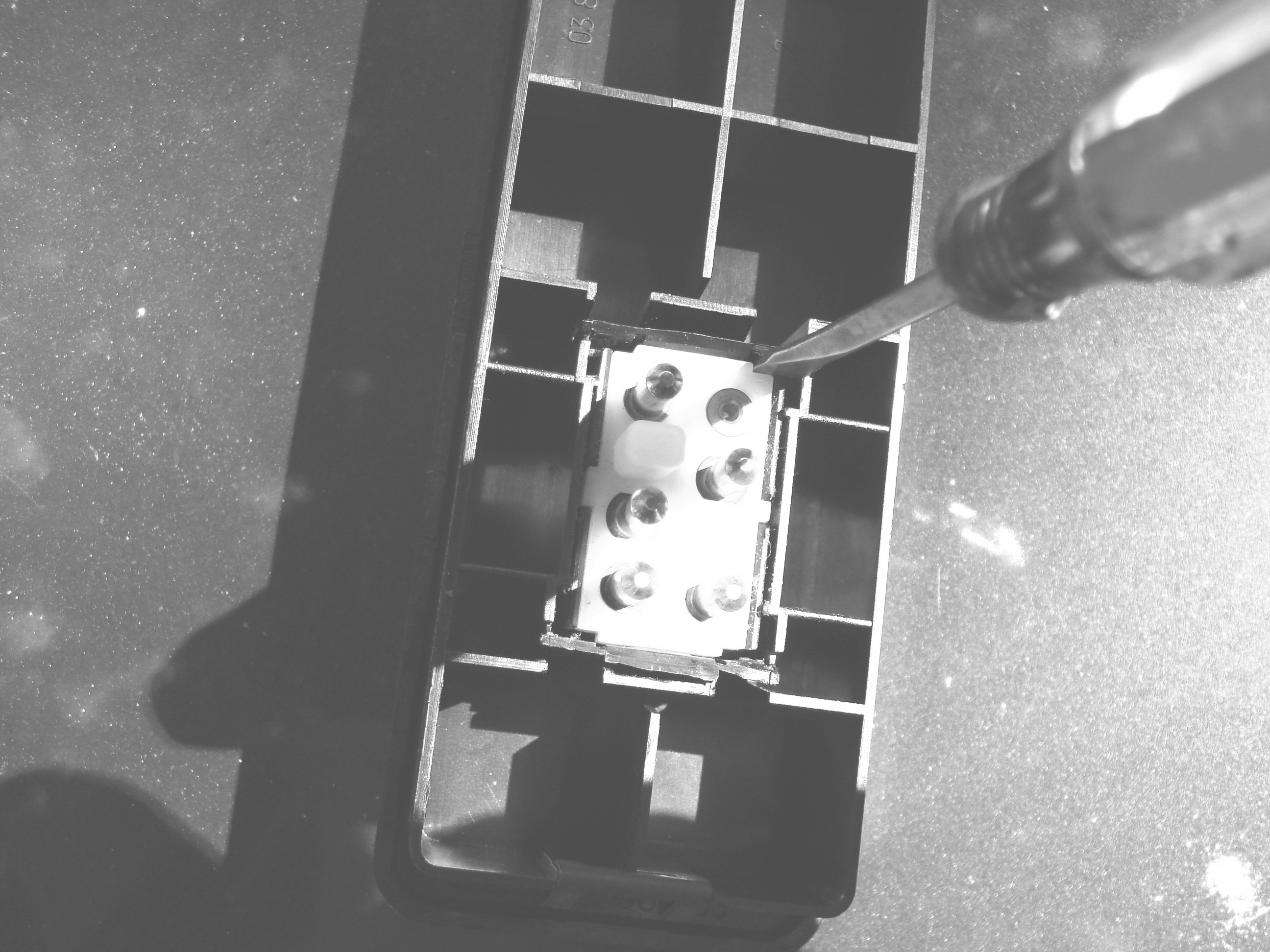

Once the black plastic surround is off, use
small flat-bladed screwdriver to lift black plastic
up over the white locking block on white
switch body. Pull switch body free.

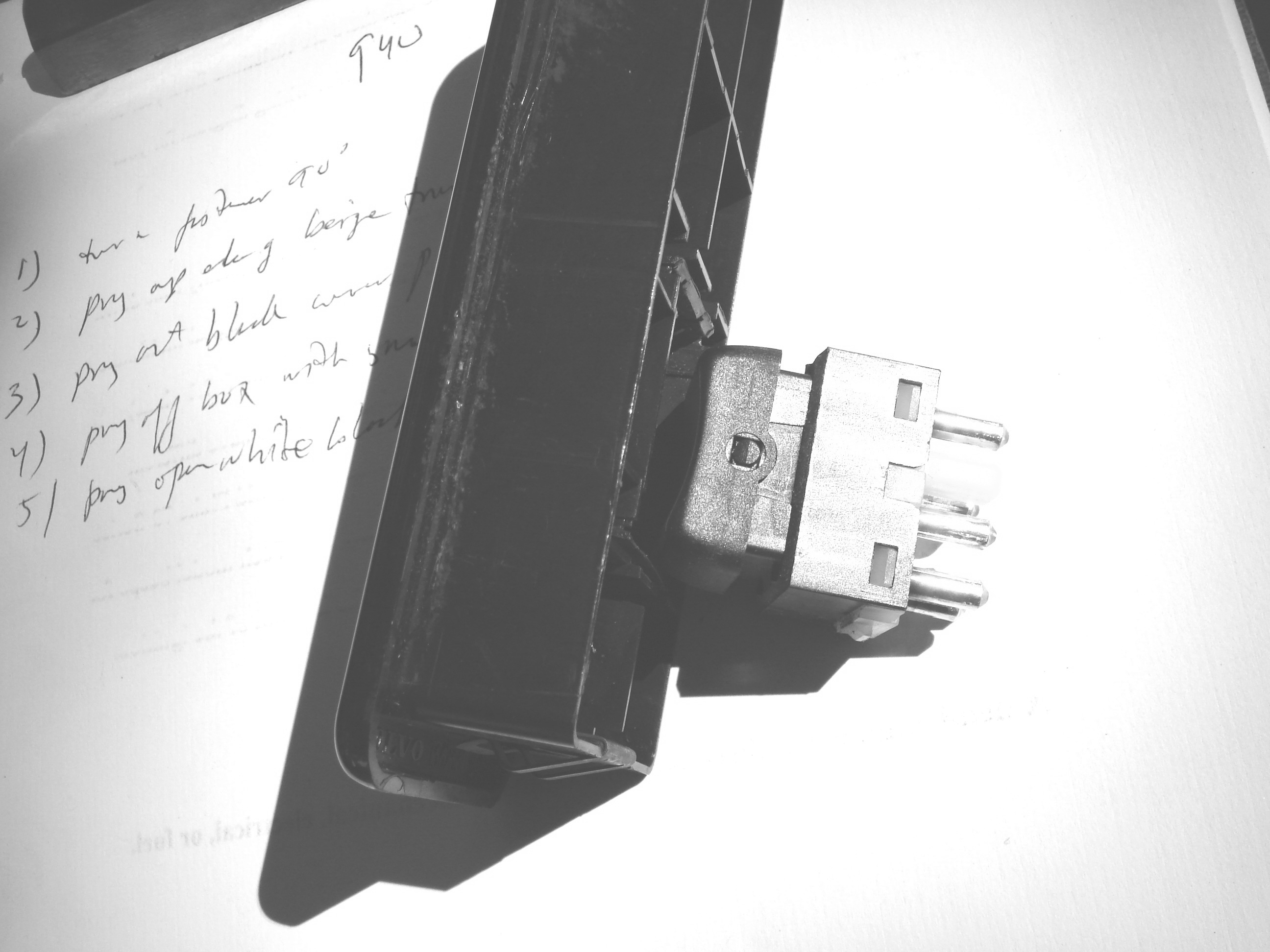

Switch is now free. Replace and reassemble in
reverse order.
